Show warchip class:
Type053H1

SPECS for Type053H1
Type warshipFFG - Frigate
Displacement1.729 tons
Crew190 complement
Length103,20 meters
Beam10,80 meters
Draught3,05 meters
Speed26,0 knots
Range7.408 Km
Propulsion2 X Diesel resulting in 44.000HP
Planes0
Helicopters0
Weapons
6Missile SY-1 (CSS-N-1 Scrubbrush) (AN; range:150 km; speed:900 km/h; caliber:760 mm;)
2Gun Type 79 (AA-AM-AN; range:17 km; speed:4000 km/h; caliber:100 mm;)
4Gun Type 76 (AA-AM; range:4,5 km; speed:4000 km/h; caliber:37 mm;)
10Missile Type 81 (ASW; range:3 km; speed:3060 km/h; caliber:240 mm;)

IN SERVICE: 6,00
Country Pennant Name In service Photo
CHN 533 Taizhou 1982
CHN 534 Jinhua 1982
CHN 543 Dandong 1985
CHN 553 Shaoguan 1985
CHN 555 Zhaotong 1987
CHN 545 Linfen 1987


SPECS for Type053H1 Egypt
Type warshipFFG - Frigate
Displacement1.729 tons
Crew190 complement
Length103,20 meters
Beam10,80 meters
Draught3,05 meters
Speed26,0 knots
Range7.408 Km
Propulsion2 X Diesel resulting in 44.000HP
Planes0
Helicopters0
Weapons
8Missile C-802A (CSS-N-8 Saccade) (AN; range:180 km; speed:1000 km/h; caliber:360 mm;)
4Torpedo MU90 Impact (AN-ASW; range:11 km; speed:50 km/h; caliber:324 mm;)
2Gun Bofors 57 mm (AA-AM-AN; range:8,5 km; speed:4000 km/h; caliber:57 mm;)
6Gun Type 76 (AA-AM; range:4,5 km; speed:4000 km/h; caliber:37 mm;)
4Missile Type 81 (ASW; range:3 km; speed:3060 km/h; caliber:240 mm;)

IN SERVICE: 2,00
Country Pennant Name In service Photo
EGY F951 Najim Al-Zafir 1974
EGY F956 Al-Nasser 1974


SPECS for Type053H1 export
Type warshipFFG - Frigate
Displacement1.729 tons
Crew190 complement
Length103,20 meters
Beam10,80 meters
Draught3,05 meters
Speed26,0 knots
Range7.408 Km
Propulsion2 X Diesel resulting in 44.000HP
Planes0
Helicopters0
Weapons
8Missile C-802A (CSS-N-8 Saccade) (AN; range:180 km; speed:1000 km/h; caliber:360 mm;)
2Gun Type 79 (AA-AM-AN; range:17 km; speed:4000 km/h; caliber:100 mm;)
4Gun Type 76 (AA-AM; range:4,5 km; speed:4000 km/h; caliber:37 mm;)
10Missile Type 81 (ASW; range:3 km; speed:3060 km/h; caliber:240 mm;)

IN SERVICE: 3,00
Country Pennant Name In service Photo
BGD F18 BNS Osman 1987

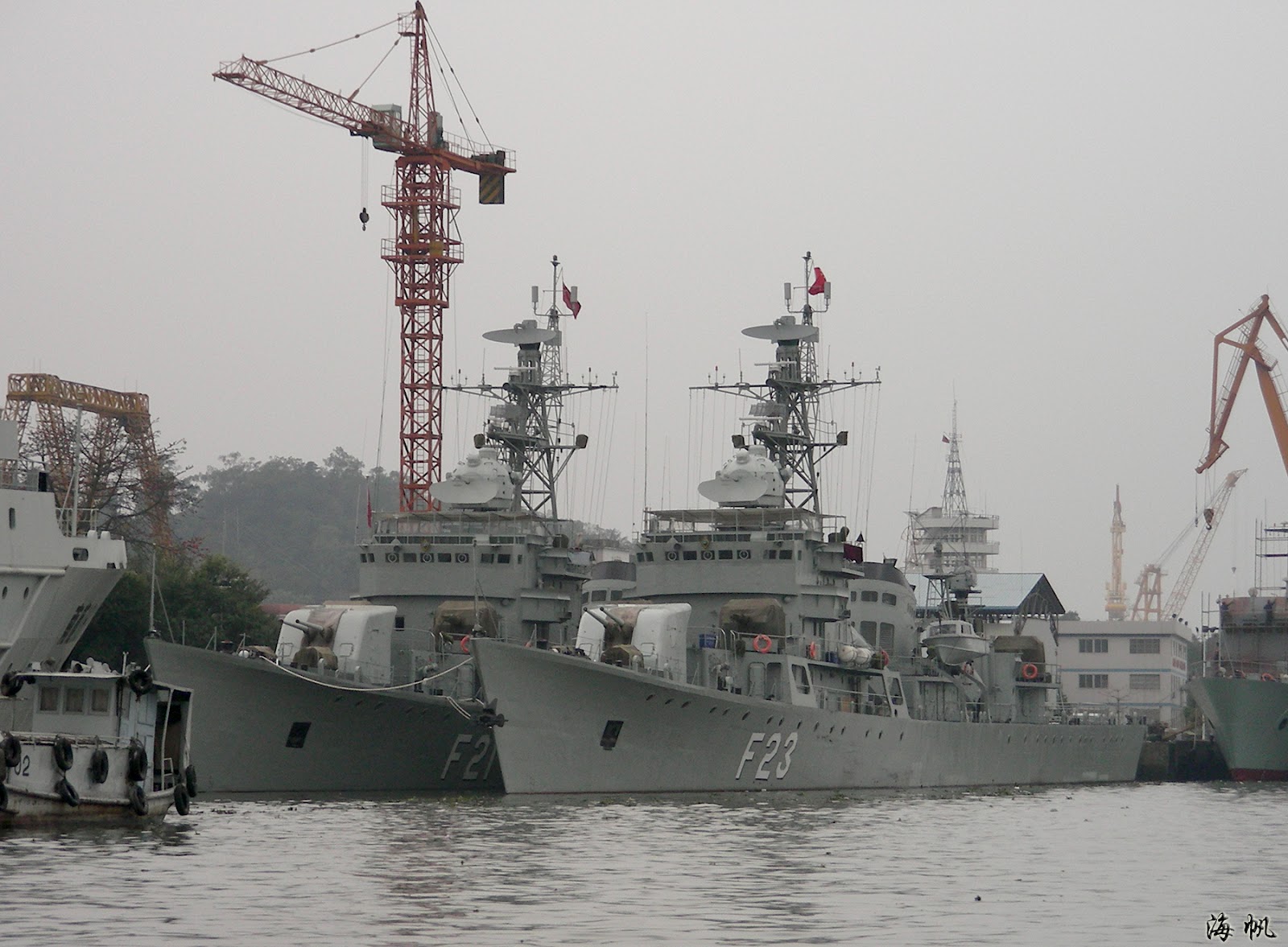

MMR F23 UMS Mahar Thiha Thura 1986
MMR F22 UMS Mahar Bandoola 1986
