Show warchip class:
Murasame

SPECS for Murasame
Type warshipDDG - Destroyer
Displacement6.100 tons
Crew165 complement
Length151,00 meters
Beam17,40 meters
Draught5,20 meters
Speed30,0 knots
Range0 Km
Propulsion4 X COGAG resulting in 60.000HP
Planes0
Helicopters1
Weapons
1Helicopter Sikorsky SH-60K Seahawk (AN-ASW; range:584 km; speed:265 km/h;)
8Missile Type 90 (AN; range:150 km; speed:1150 km/h; caliber:350 mm;)
16Missile RIM-162A ESSM (AA-AM; range:50 km; speed:4120 km/h; caliber:254 mm;)
16Missile RUM-139 VL-ASROC (ASW; range:22 km; speed:1188 km/h; caliber:358 mm;)
1Gun OTO Melara 76/62 (AA-AM-AN; range:20 km; speed:3300 km/h; caliber:76 mm;)
6Torpedo Type 73 (AN-ASW; range:10 km; speed:40 km/h; caliber:324 mm;)
2Gun Phalanx (AA-AM; range:3,5 km; speed:4000 km/h; caliber:20 mm;)

IN SERVICE: 9,00
Country Pennant Name In service Photo
JPN DD-101 JS Murasame 1996
JPN DD-102 JS Harusame 1997

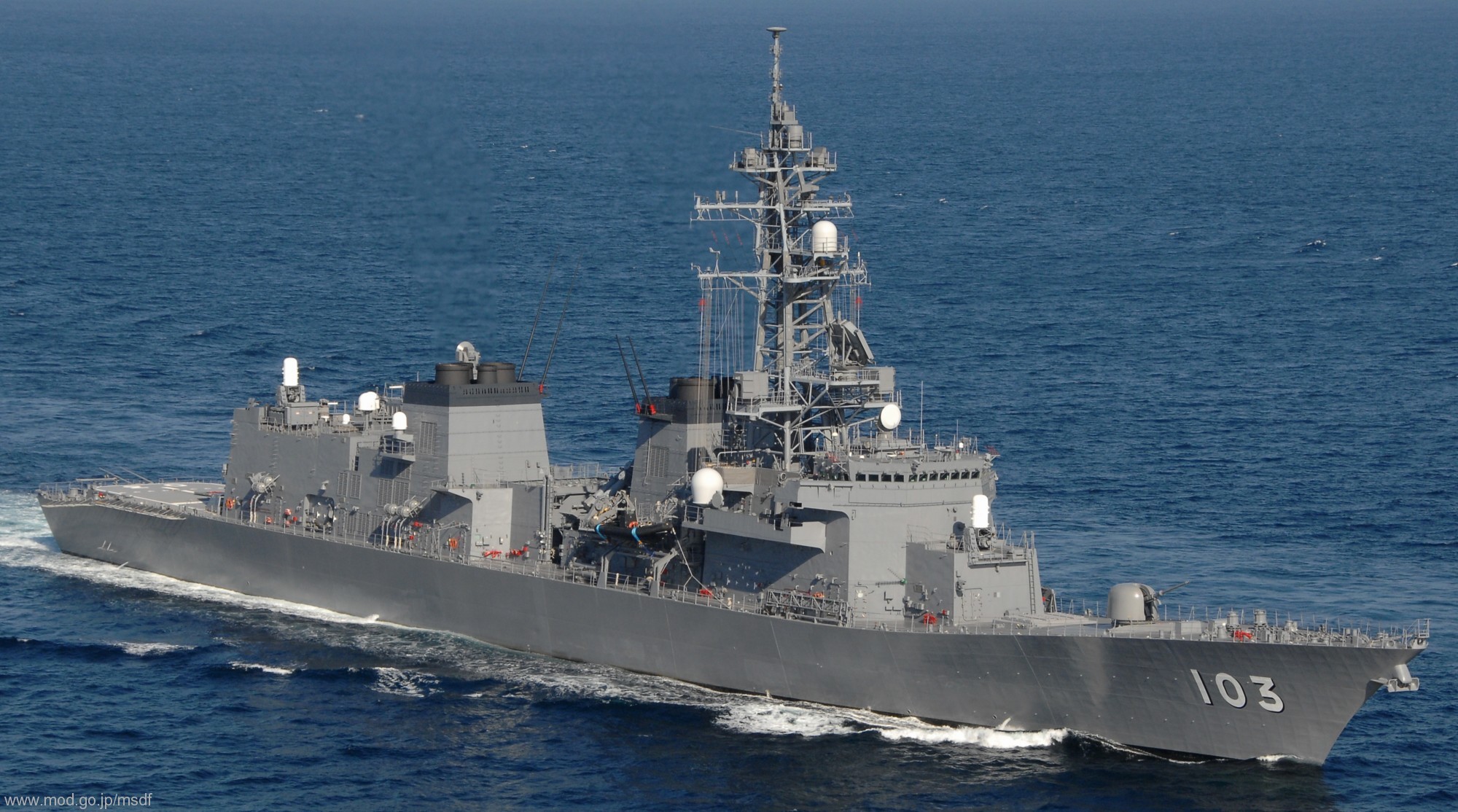

JPN DD-103 JS Yudachi 1999
JPN DD-104 JS Kirisame 1999
JPN DD-105 JS Inazuma 2000
JPN DD-106 JS Samidare 2000
JPN DD-107 JS Ikazuchi 2001
JPN DD-108 JS Akebono 2002
JPN DD-109 JS Ariake 2002
