Martadinata

SPECS for Martadinata
Type warshipFFG - Frigate
Displacement2.365 tons
Crew80 complement
Length105,11 meters
Beam14,02 meters
Draught3,75 meters
Speed28,0 knots
Range6.700 Km
Propulsion2 X CODOE resulting in 26.820HP
Planes0
Helicopters1
Weapons
1Helicopter Aerospatiale AS365MBe Dauphin (AN-ASW; range:897 km; speed:306 km/h;)
8Missile MM40 Exocet (AN; range:180 km; speed:1134 km/h; caliber:348 mm;)
1Gun OTO Melara 76/62 (AA-AM-AN; range:20 km; speed:3300 km/h; caliber:76 mm;)
12Missile MDBA VL MICA-M (AA-AM; range:20 km; speed:3300 km/h; caliber:160 mm;)
6Torpedo WASS A244-S (AN-ASW; range:13,5 km; speed:40 km/h; caliber:324 mm;)
1Gun Rheinmetall Oerlikon Millennium Gun (AA-AM; range:5 km; speed:4000 km/h; caliber:35 mm;)

IN SERVICE: 2,00
Country Pennant Name In service Photo

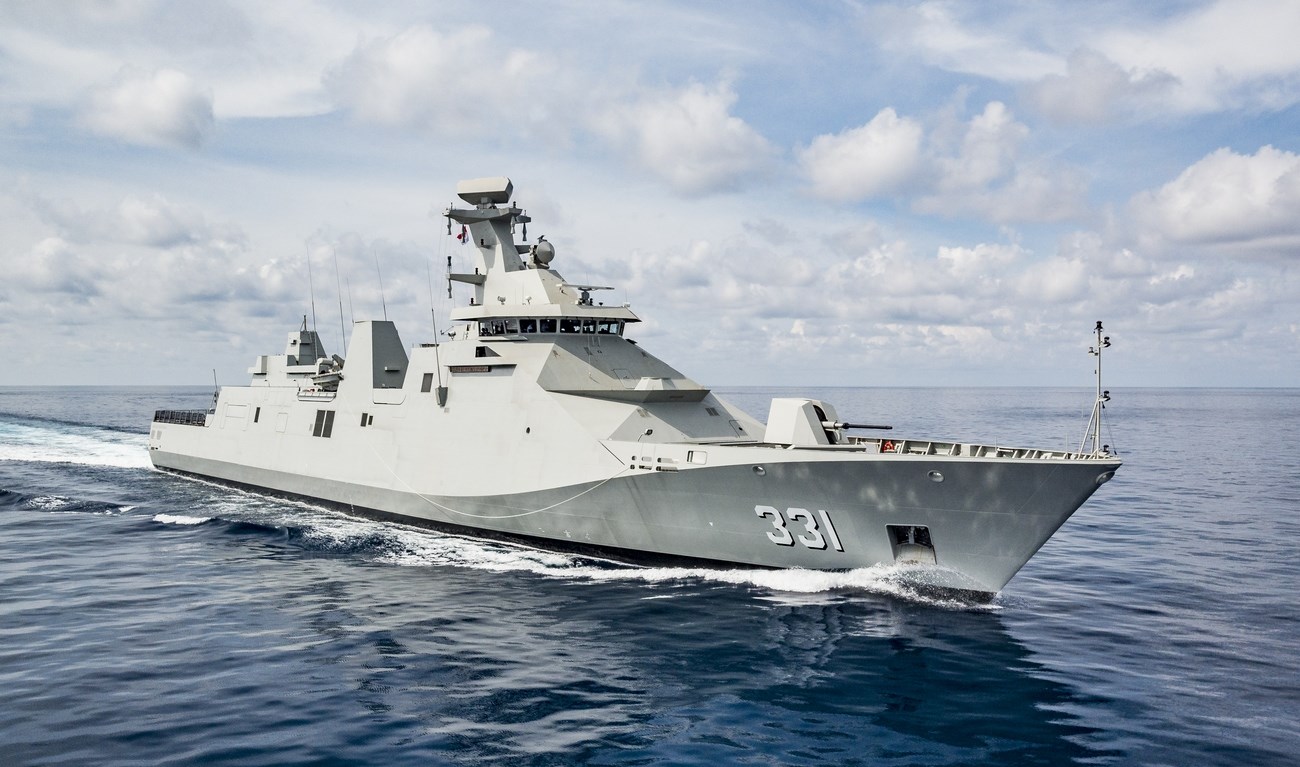

IDN 331 KRI Raden Eddy Martadinata 2017
IDN 332 KRI I Gusti Ngurah Rai 2017
