Abukuma

SPECS for Abukuma
Type warshipFFG - Frigate
Displacement2.550 tons
Crew120 complement
Length109,00 meters
Beam13,00 meters
Draught3,70 meters
Speed27,0 knots
Range8.000 Km
Propulsion2 X CODOG resulting in 51.000HP
Planes0
Helicopters0
Weapons
8Missile RGM-84L Harpoon block II (AN; range:124 km; speed:864 km/h; caliber:340 mm;)
8Missile RUM-139 VL-ASROC (ASW; range:22 km; speed:1188 km/h; caliber:358 mm;)
1Gun OTO Melara 76/62 (AA-AM-AN; range:20 km; speed:3300 km/h; caliber:76 mm;)
6Torpedo Type 73 (AN-ASW; range:10 km; speed:40 km/h; caliber:324 mm;)
1Gun Phalanx (AA-AM; range:3,5 km; speed:4000 km/h; caliber:20 mm;)

IN SERVICE: 6,00
Country Pennant Name In service Photo
JPN DE-229 JS Abukuma 1989
JPN DE-230 JS Jintsu 1990

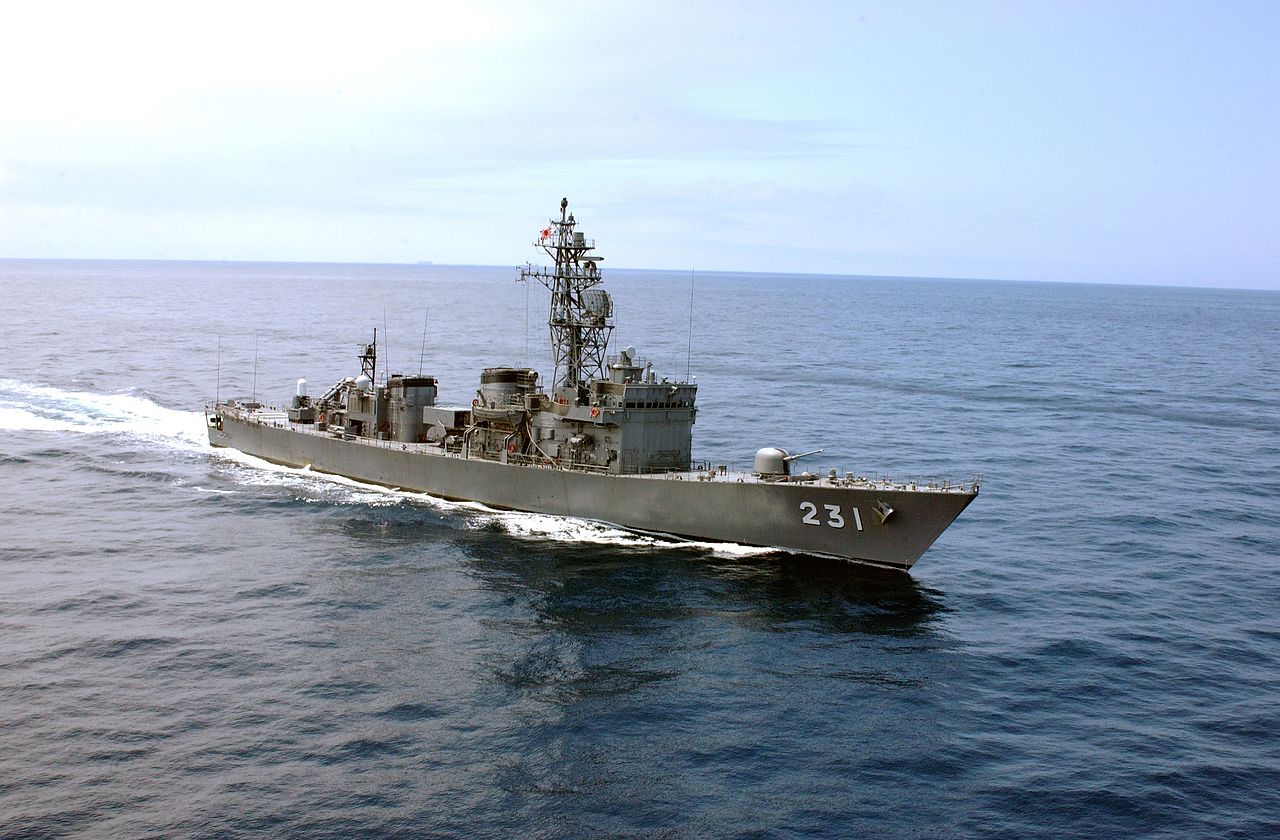

JPN DE-231 JS Oyodo 1991
JPN DE-232 JS Sendai 1991
JPN DE-233 JS Chikuma 1993

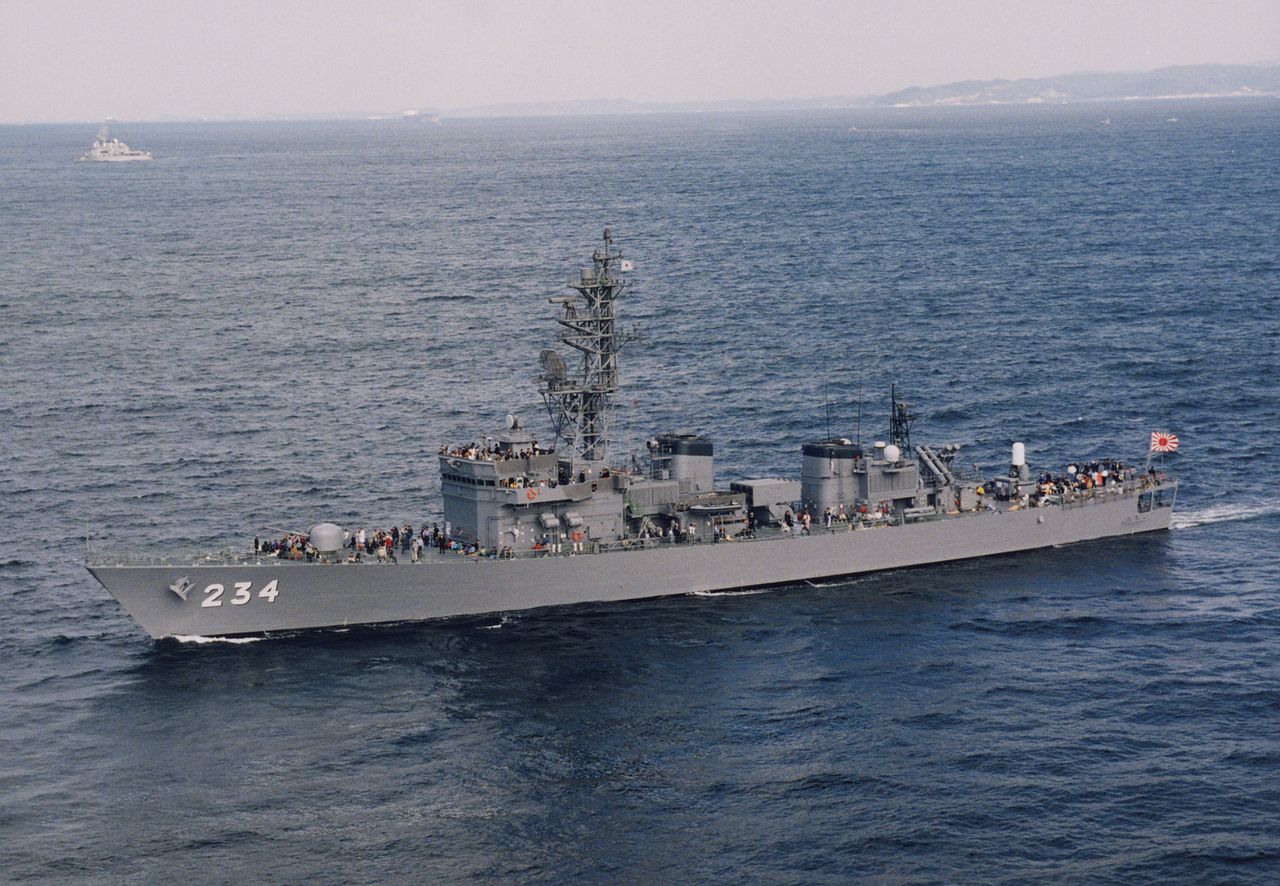

JPN DE-234 JS Tone 1993
